OpenStack私有网络旁路部署虚拟防火墙

发表于 更新于 分类于

之前的文章<<OpenStack私有网络安全防护>>介绍了在私有网络中将虚拟防火墙(以下称为VFW)串联接入的方法。本文来介绍旁路部署VFW, 通过策略路由实现防火墙接入的方法。

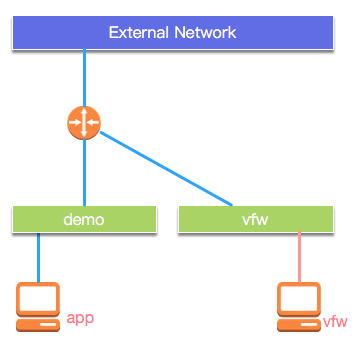

逻辑网络拓扑如下:

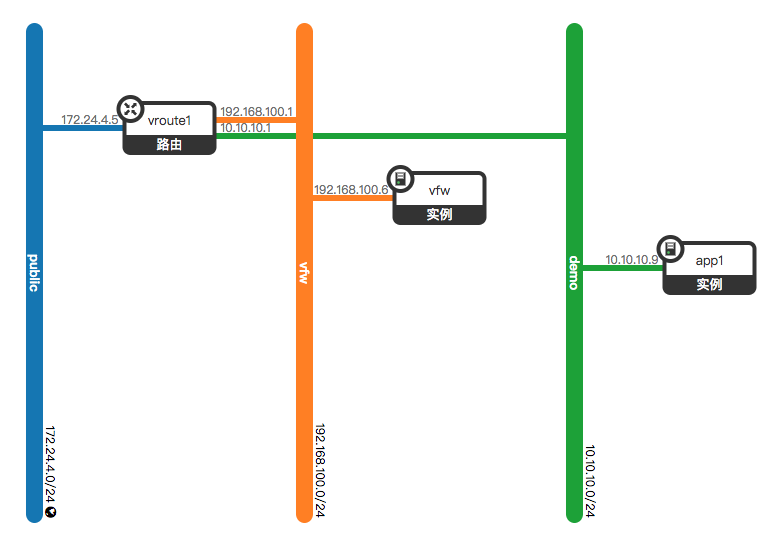

我们在OpenStack环境中创建一个CentOS7的实例来模拟VFW, 部署完网络拓扑如下:

我们需要将CentOS7的路由转发功能开启:

1
sysctl -w net.ipv4.ip_forward=1

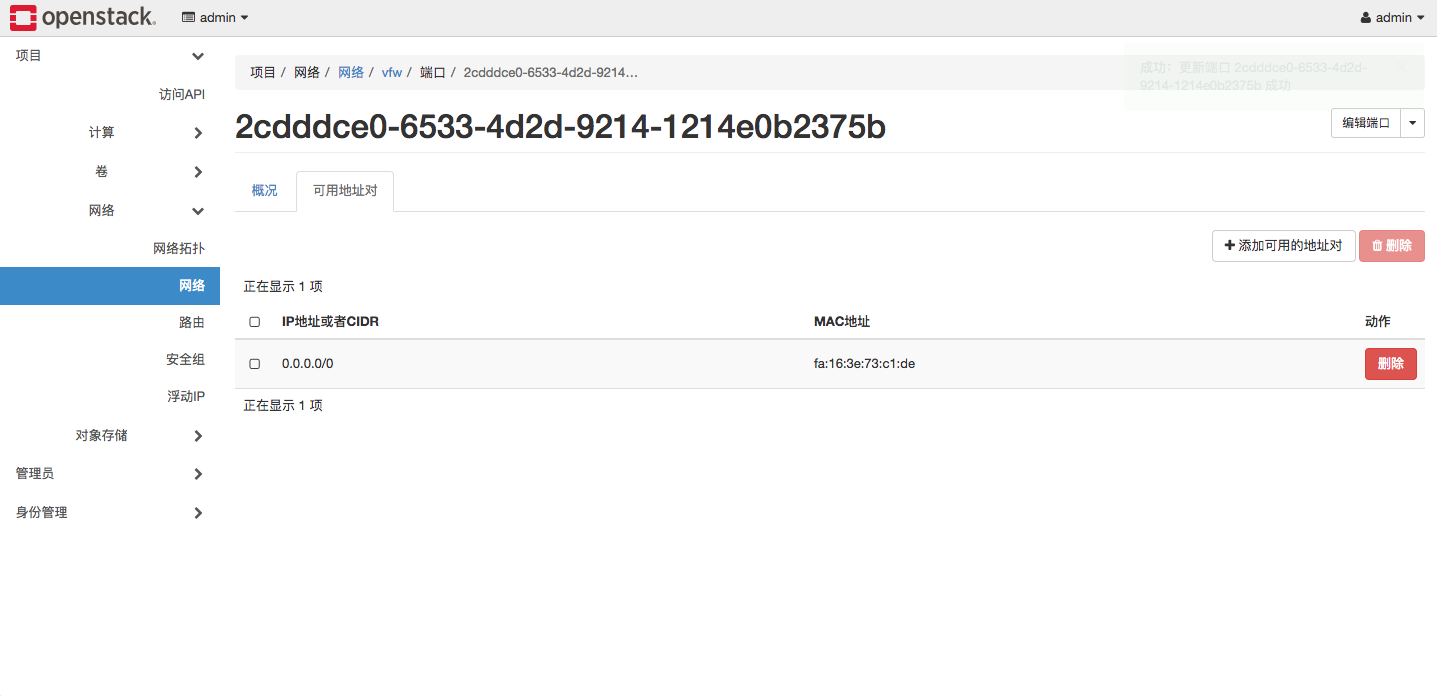

此外，OpenStack网络上有Anti Mac-Spoofing的机制，默认情况下，只有数据包的MAC、IP与虚拟机网络接口的MAC、IP相匹配时才允许通过。因而我们需要配置VFW网络接口的可用地址对。将其IP设置为0.0.0.0/0, MAC为接口本身MAC，这样将允许所有数据包通过，如下图所示:

为了将VFW串入网络路径中，我们需要在拓扑图中私有网络demo的vRouter上配置策略路由。OpenStack不支持配置策略路由, 我们只能手动在vRouter的net namespace中配置。

我们登录进vRouter的namespace:

1
ip netns exec qrouter-b2f289b6-5e7b-4f56-bf5d-ac01629eb333 bash

查看网络接口:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
[root@aio ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
11: qr-a74cdf71-65: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN group default qlen 1000
    link/ether fa:16:3e:26:80:22 brd ff:ff:ff:ff:ff:ff
    inet 10.10.10.1/24 brd 10.10.10.255 scope global qr-a74cdf71-65
       valid_lft forever preferred_lft forever
    inet6 fe80::f816:3eff:fe26:8022/64 scope link
       valid_lft forever preferred_lft forever
13: qg-c0eea9fd-62: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default qlen 1000
    link/ether fa:16:3e:d1:1f:45 brd ff:ff:ff:ff:ff:ff
    inet 172.24.4.5/24 brd 172.24.4.255 scope global qg-c0eea9fd-62
       valid_lft forever preferred_lft forever
    inet6 fe80::f816:3eff:fed1:1f45/64 scope link
       valid_lft forever preferred_lft forever
21: qr-16448d15-00: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN group default qlen 1000
    link/ether fa:16:3e:84:42:72 brd ff:ff:ff:ff:ff:ff
    inet 192.168.100.1/24 brd 192.168.100.255 scope global qr-16448d15-00
       valid_lft forever preferred_lft forever
    inet6 fe80::f816:3eff:fe84:4272/64 scope link
       valid_lft forever preferred_lft forever

添加一个专用路由表，将默认路由指向VFW所连接的vRouter接口:

1
2
3
[root@aio ~]# ip route add default via 192.168.100.6 dev qr-16448d15-00 table 100
[root@aio ~]# ip route show table 100
default via 192.168.100.6 dev qr-16448d15-00

添加入方向策略路由:

1
ip rule add iif qg-c0eea9fd-62 to 10.10.10.0/24 lookup 100

添加出方向策略路由:

1
ip rule add iif qr-a74cdf71-65 lookup 100

此时路由规则如下:

1
2
3
4
5
6
[root@aio ~]# ip rule
0:    from all lookup local
32764:    from all iif qr-a74cdf71-65 lookup 100
32765:    from all to 10.10.10.0/24 iif qg-c0eea9fd-62 lookup 100
32766:    from all lookup main
32767:    from all lookup default

我们给虚拟机实例绑定一个浮动IP:172.24.4.4, 然后从外部访问浮动IP，访问成功:

1
2
3
4
5
6
7
8
[root@aio ~]# ping 172.24.4.4 -c 2
PING 172.24.4.4 (172.24.4.4) 56(84) bytes of data.
64 bytes from 172.24.4.4: icmp_seq=1 ttl=61 time=9.94 ms
64 bytes from 172.24.4.4: icmp_seq=2 ttl=61 time=3.72 ms

--- 172.24.4.4 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1000ms
rtt min/avg/max/mdev = 3.725/6.837/9.949/3.112 ms

在VFW上的抓包结果也符合预期:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
[root@vfw ~]# tcpdump -ieth0 -nn icmp -e
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on eth0, link-type EN10MB (Ethernet), capture size 262144 bytes

12:52:22.138927 fa:16:3e:84:42:72 > fa:16:3e:73:c1:de, ethertype IPv4 (0x0800), length 98: 172.24.4.1 > 10.10.10.9: ICMP echo request, id 18352, seq 1, length 64
12:52:22.139199 fa:16:3e:73:c1:de > fa:16:3e:84:42:72, ethertype IPv4 (0x0800), length 98: 172.24.4.1 > 10.10.10.9: ICMP echo request, id 18352, seq 1, length 64
12:52:22.142383 fa:16:3e:84:42:72 > fa:16:3e:73:c1:de, ethertype IPv4 (0x0800), length 98: 10.10.10.9 > 172.24.4.1: ICMP echo reply, id 18352, seq 1, length 64
12:52:22.143685 fa:16:3e:73:c1:de > fa:16:3e:84:42:72, ethertype IPv4 (0x0800), length 98: 10.10.10.9 > 172.24.4.1: ICMP echo reply, id 18352, seq 1, length 64
12:52:23.138975 fa:16:3e:84:42:72 > fa:16:3e:73:c1:de, ethertype IPv4 (0x0800), length 98: 172.24.4.1 > 10.10.10.9: ICMP echo request, id 18352, seq 2, length 64
12:52:23.139423 fa:16:3e:73:c1:de > fa:16:3e:84:42:72, ethertype IPv4 (0x0800), length 98: 172.24.4.1 > 10.10.10.9: ICMP echo request, id 18352, seq 2, length 64
12:52:23.141067 fa:16:3e:84:42:72 > fa:16:3e:73:c1:de, ethertype IPv4 (0x0800), length 98: 10.10.10.9 > 172.24.4.1: ICMP echo reply, id 18352, seq 2, length 64
12:52:23.141665 fa:16:3e:73:c1:de > fa:16:3e:84:42:72, ethertype IPv4 (0x0800), length 98: 10.10.10.9 > 172.24.4.1: ICMP echo reply, id 18352, seq 2, length 64
^C
8 packets captured
8 packets received by filter
0 packets dropped by kernel

我们再从业务虚拟机向外访问, 访问却是失败的:

1
2
3
4
5
$ ping -c 2 114.114.114.114
PING 114.114.114.114 (114.114.114.114): 56 data bytes

--- 114.114.114.114 ping statistics ---
2 packets transmitted, 0 packets received, 100% packet loss

我的实验环境为All in One环境，在br-ex上抓包发现, 数据包的源IP没有被SNAT策略替换为正确的IP:

1
2
3
4
5
6
7
8
9
10
[root@aio ~]# tcpdump -i br-ex -nn -e icmp
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on br-ex, link-type EN10MB (Ethernet), capture size 262144 bytes

08:57:43.965997 fa:16:3e:d1:1f:45 > f2:3e:7c:35:ae:4e, ethertype IPv4 (0x0800), length 98: 10.10.10.9 > 114.114.114.114: ICMP echo request, id 33537, seq 0, length 64
08:57:44.965966 fa:16:3e:d1:1f:45 > f2:3e:7c:35:ae:4e, ethertype IPv4 (0x0800), length 98: 10.10.10.9 > 114.114.114.114: ICMP echo request, id 33537, seq 1, length 64
^C
2 packets captured
2 packets received by filter
0 packets dropped by kernel

这是由于OpenStack的虚拟网络实现上使用IPTABLES规则并依赖CONNTRACK机制实现NAT。SNAT实现上只在CONNTRACK状态为NEW时才会生成NAT所需的状态信息，后续被跳踪的该连接的数据包直接使用生成的NAT状态信息。我们从业务虚拟机向外访问，数据包到达vRouter上的接口时，CONNTRACK模块生成CONNTRACK表项，而此时出口接口为VFW路由接口，并不需要做SNAT，因而不会生成NAT状态信息。而从VFW路由接口再次到达vrouter时，CONNTRACK表项已经生成，不再处理NAT信息，而是直接将数据包发送出去。出入路由外网接口的数据包依赖CONNTRACK机制完成NAT，因而我们不能完全禁用CONNTRACK, 我们只能在业务子网接口和VFW子网接口之间的数据包取消CONNTRACK。

在vRouter中添加如下两条iptables规则来禁用conntrack:

1
2
iptables -t raw -A PREROUTING -i qr-a74cdf71-65 -j NOTRACK
iptables -t raw -A PREROUTING -i qr-16448d15-00 -d 10.10.10.0/24 -j NOTRACK

此时，我们再来测试, 访问成功:

1
2
3
4
5
6
7
8
$ ping -c 2 114.114.114.114
PING 114.114.114.114 (114.114.114.114): 56 data bytes
64 bytes from 114.114.114.114: seq=0 ttl=53 time=30.849 ms
64 bytes from 114.114.114.114: seq=1 ttl=73 time=29.529 ms

--- 114.114.114.114 ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max = 29.529/30.189/30.849 ms

从VFW上的抓包结果可以看出符合预期:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
[root@vfw ~]# tcpdump -ieth0 -nn  icmp -e
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on eth0, link-type EN10MB (Ethernet), capture size 262144 bytes

09:00:07.099242 fa:16:3e:84:42:72 > fa:16:3e:73:c1:de, ethertype IPv4 (0x0800), length 98: 10.10.10.9 > 114.114.114.114: ICMP echo request, id 23809, seq 0, length 64
09:00:07.099515 fa:16:3e:73:c1:de > fa:16:3e:84:42:72, ethertype IPv4 (0x0800), length 98: 10.10.10.9 > 114.114.114.114: ICMP echo request, id 23809, seq 0, length 64
09:00:07.127682 fa:16:3e:84:42:72 > fa:16:3e:73:c1:de, ethertype IPv4 (0x0800), length 98: 114.114.114.114 > 10.10.10.9: ICMP echo reply, id 23809, seq 0, length 64
09:00:07.128011 fa:16:3e:73:c1:de > fa:16:3e:84:42:72, ethertype IPv4 (0x0800), length 98: 114.114.114.114 > 10.10.10.9: ICMP echo reply, id 23809, seq 0, length 64
09:00:08.100084 fa:16:3e:84:42:72 > fa:16:3e:73:c1:de, ethertype IPv4 (0x0800), length 98: 10.10.10.9 > 114.114.114.114: ICMP echo request, id 23809, seq 1, length 64
09:00:08.100456 fa:16:3e:73:c1:de > fa:16:3e:84:42:72, ethertype IPv4 (0x0800), length 98: 10.10.10.9 > 114.114.114.114: ICMP echo request, id 23809, seq 1, length 64
09:00:08.127817 fa:16:3e:84:42:72 > fa:16:3e:73:c1:de, ethertype IPv4 (0x0800), length 98: 114.114.114.114 > 10.10.10.9: ICMP echo reply, id 23809, seq 1, length 64
09:00:08.128046 fa:16:3e:73:c1:de > fa:16:3e:84:42:72, ethertype IPv4 (0x0800), length 98: 114.114.114.114 > 10.10.10.9: ICMP echo reply, id 23809, seq 1, length 64
^C
8 packets captured
8 packets received by filter
0 packets dropped by kernel

本文中的VFW接入方式为3层转发模式，而有些厂商的VFW只支持二层透明接入，这种情况下如何在OpenStack环境中应用呢？我后续再来写文章来说明。
